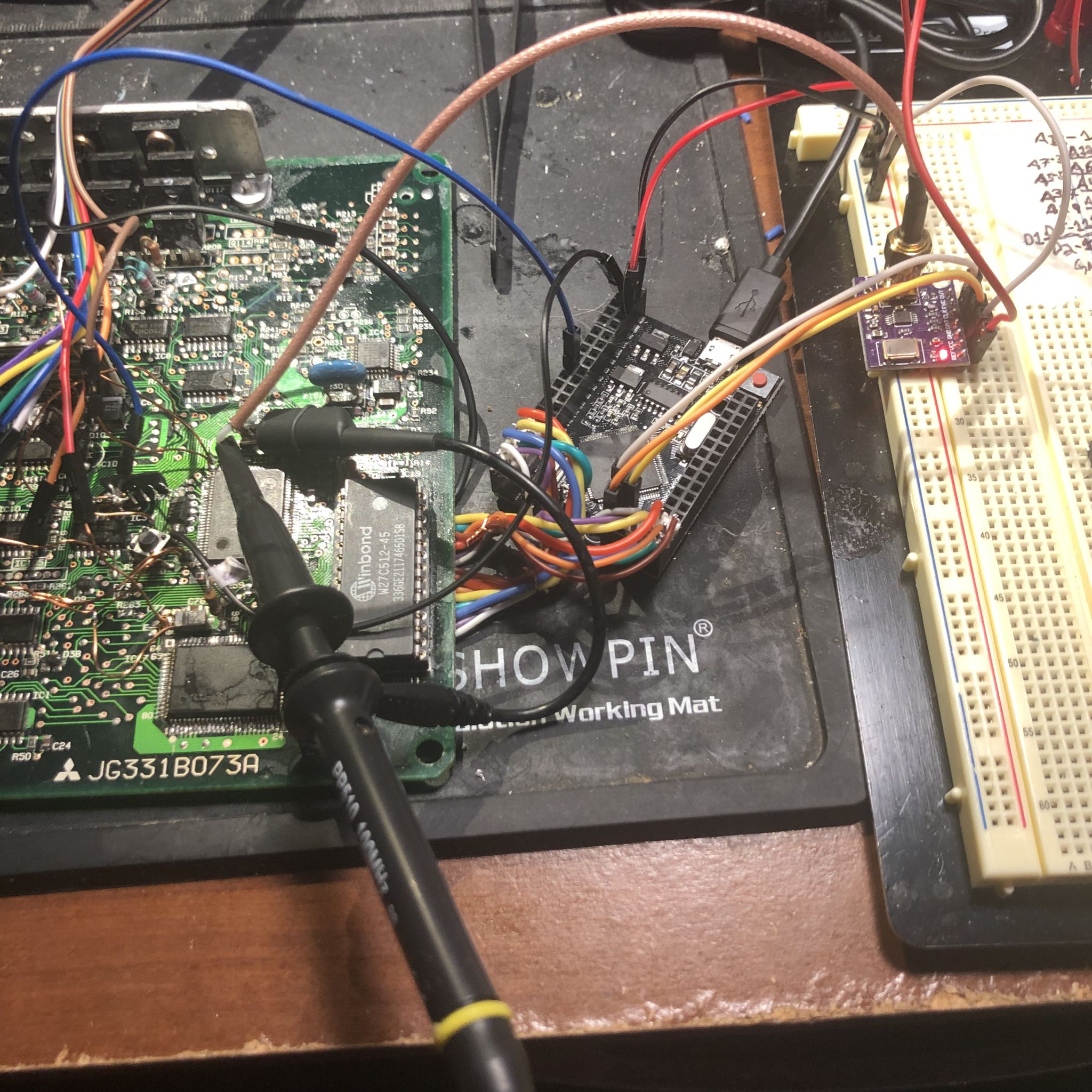

MH6311/TMP76C55 on a TCU with TTL clock generator connected to run MPU at lower frequencies to allow Arduino to observe operation
